ABHINANDAN_HNX30D

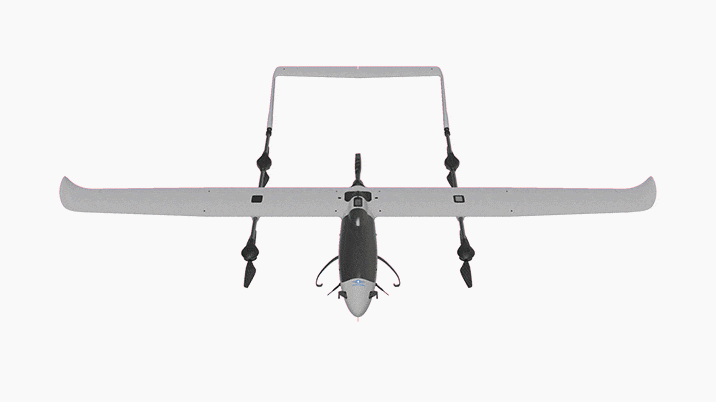

ABHINANDAN_HNX30D Series is a High altitude Autonomous Hybrid Fixed-Wing Advanced Unmanned Aerial System (UAS). It can facilitate Defence forces with missions requiring Advanced Surveillance Capabilities.

This UAS can cruise at speeds up to 125 Km/hr and as high as 6000 m AMSL and safely function in temperatures ranging from -20 to 55 Degrees Celsius and up to 95% Relative Humanity (RH). Specifically engineered for the Defence sector, this product features enhanced structural strength and robust stability, ensuring reliable performance in gusty environments and wind conditions up to 30 knots. It has capability of NABL certification for Operating Temperature, Storage Temperature, Damp Heat under IEC 60068 standard, Dust & Drizzle under IEC 60529, and Humidity under IEC 60950.

PAYLOAD OPTION: Surveillance SYSTEM

KEY FEATURES

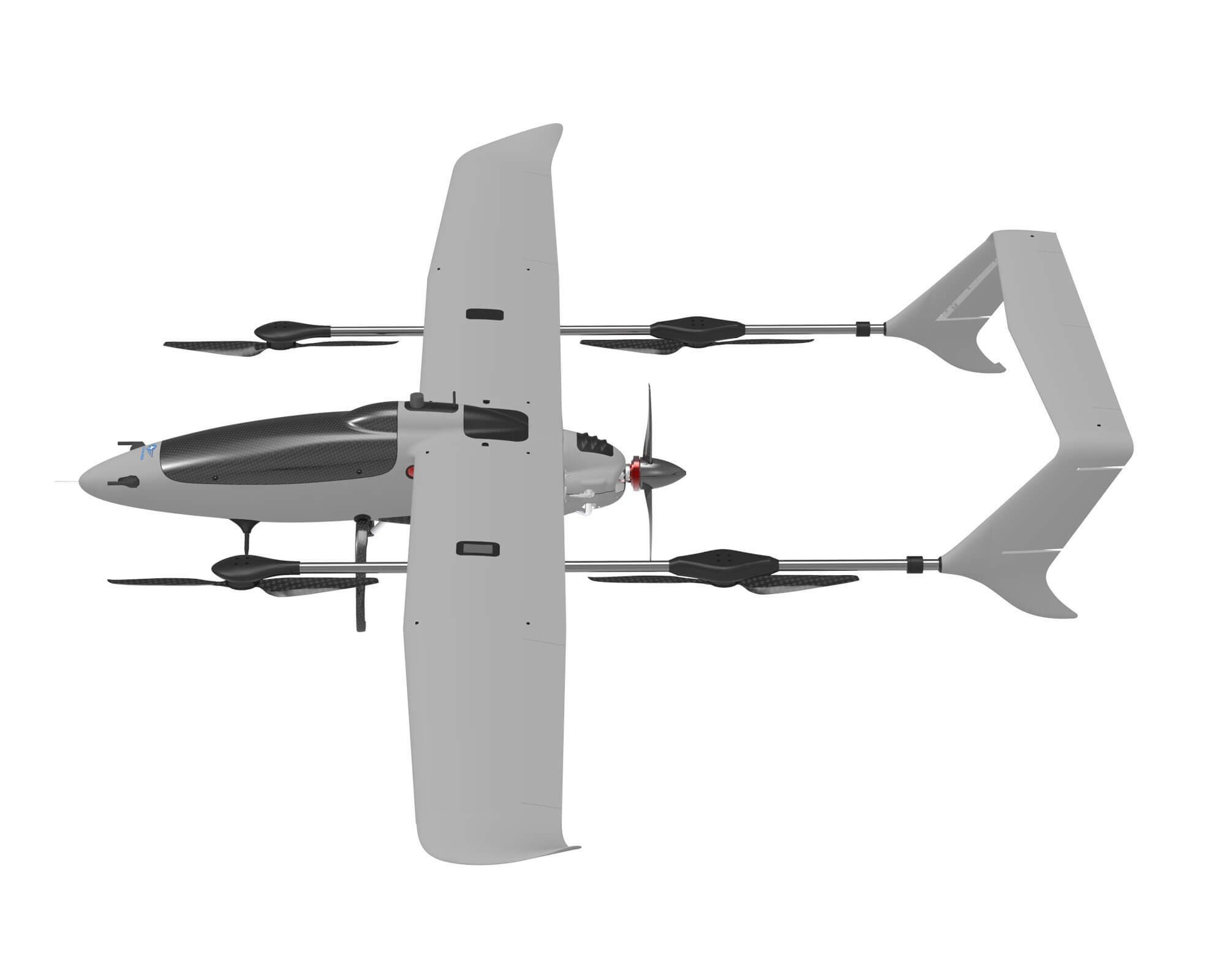

ABHINANDAN_HNX30-1
  • Made in India, Indigenously Designed & Developed (IDDM) Category UAV.
  • Application: Strategic Surveillance.
  • Rugged and robust airframe made of Kevlar, Glass & Carbon Fiber composite materials.
  • Generator- starter system.
  • Fail-Safe Capabilities in Case of Communication Loss, Low battery, Low Fuel, Rain and High Wind etc.
  • Multi-Band Switching, Frequency hopping, Robust mesh networking with AES-256 Encryption.
  • Operational capability in GNSS/GPS Denied Environment.

SPECIFICATIONS

  • MTOW: 33 kg
  • Type: Hybrid Fixed-Wing VTOL
  • Operation: Autonomous
  • Propulsion: Fuel Engine & Battery Operated
  • Take-Off Altitude: 4500 m AMSL
  • Endurance: Up to 5 Hours
  • Cruise Speed (MSL): 20 m/s
  • Max Speed: 35 m/s
  • Wind Resistance: 15 m/s
  • Radius of Operation: 50-100 km
  • Payload Options:
    • Option 1: EO Sensor: 20X Optical Zoom
      IR Sensor: 4X Continuous Zoom.
    • Option 2: EO Sensor: 40X Optical Zoom
      IR Sensor: 8X Continuous Zoom.

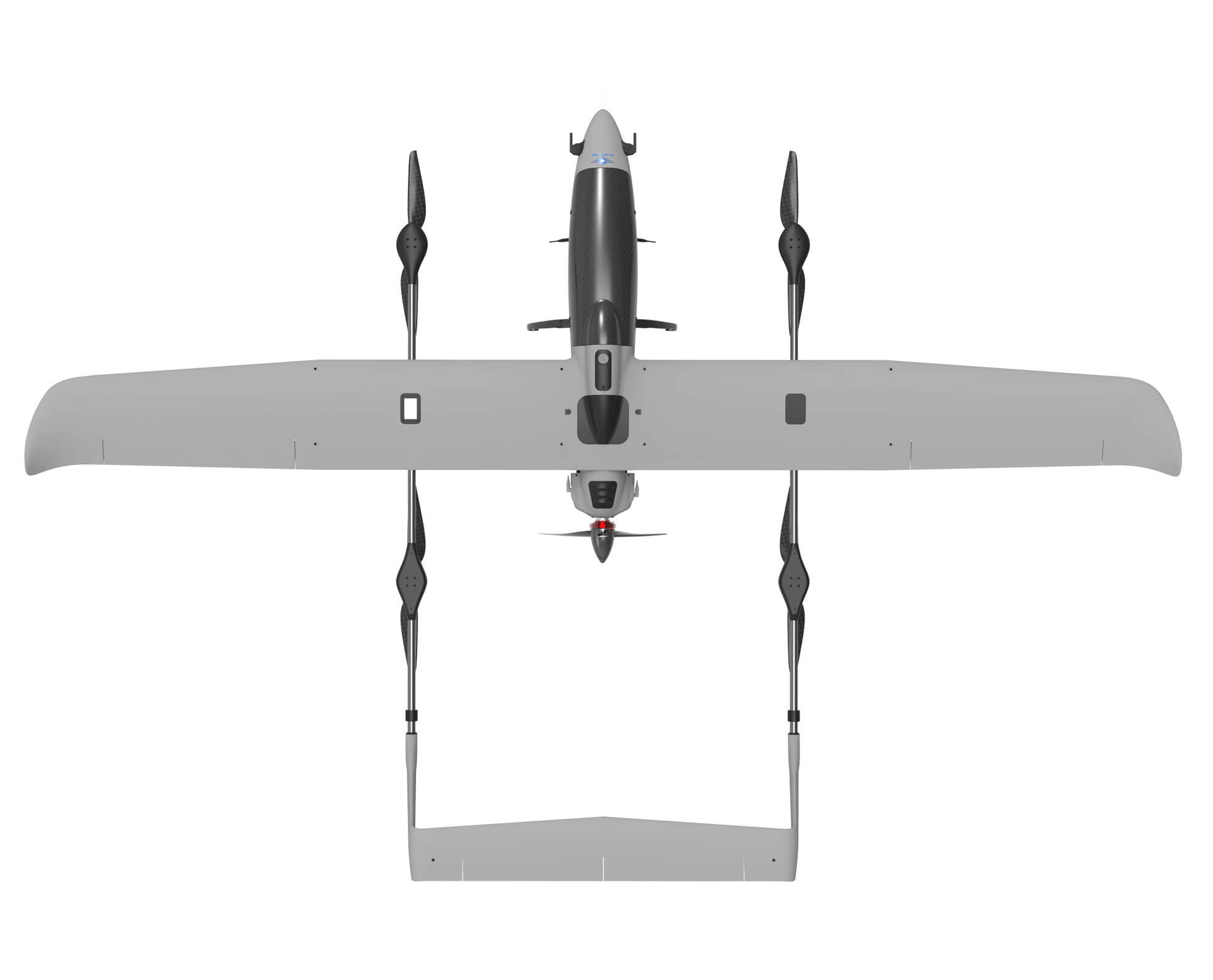

ABHINANDAN_HNX30-2

PERFORMANCE

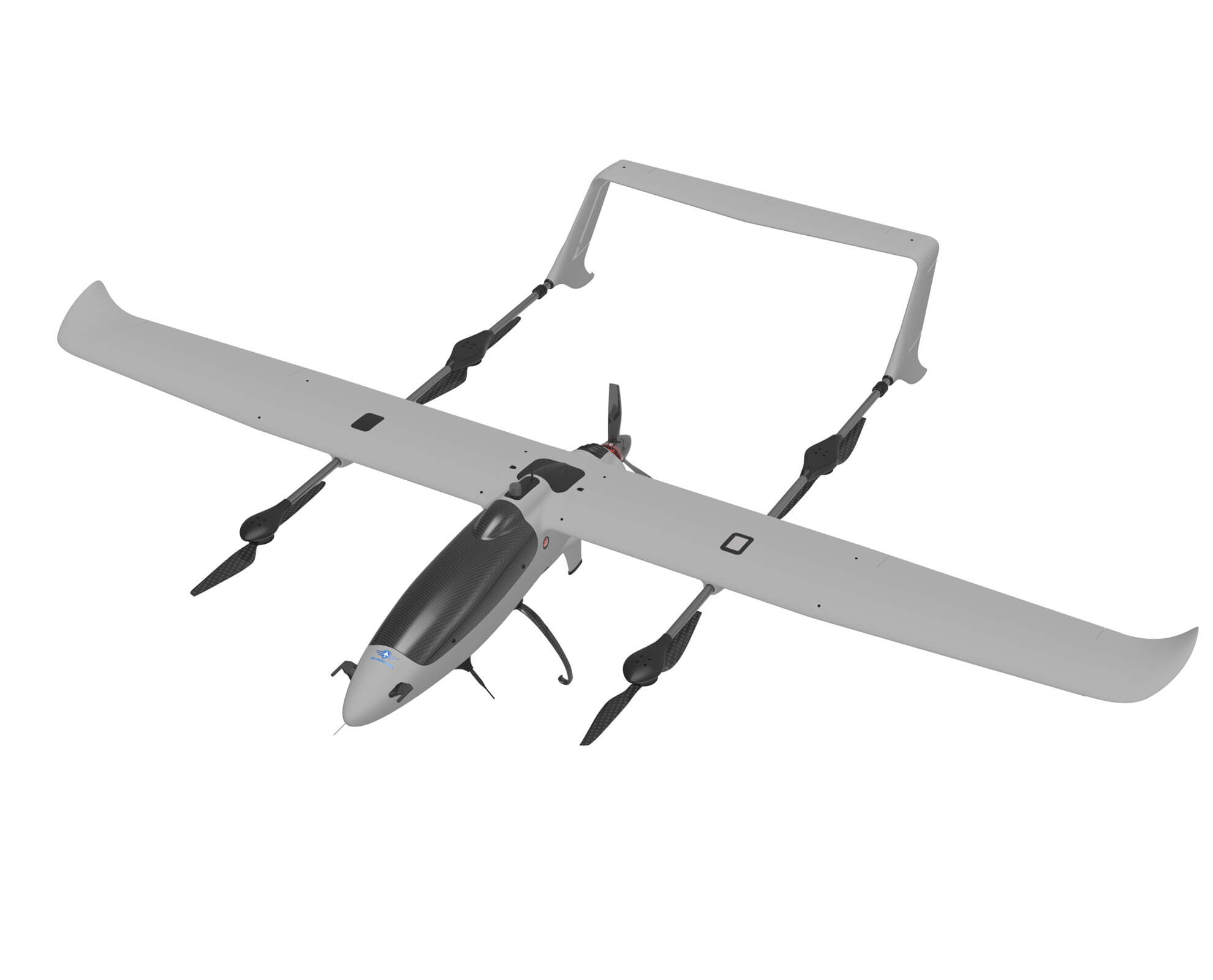

ABHINANDAN_HNX30-3
  • Cruise Speed (MSL): 20 m/s
  • Maximum Speed: 35 m/s
  • Radius of Operation:
    Option 1: Upto 30 Km
    Option 2: Upto 50 Km
    Option 3: Upto 100 Km
  • Wind Resistance: Up to 30 Knots

OTHER FEATURES

  • Minimum of 1000 landings.
  • Modular Airframe.
  • Multiple Payload Options available.
  • Easy replacement and maintenance.
  • Hand Held Joystick / controller.
  • Rugged Transportation Box available.
